Twin Telescopic Sliding Gate Hardware Kit – Cable Drive System

Description

Twin Telescopic Sliding Gate Hardware Kit – Cable Drive System

This twin telescopic sliding gate hardware kit allows large driveway openings to be secured where side clearance is limited. Designed for two sliding gate panels that travel together, the system enables wide openings while only requiring approximately half the run-back space of a traditional single sliding gate.

The cable driven synchronisation system connects the leading and trailing gate panels so both move together during operation. This allows both gates to be automated using a single gate motor, simplifying installation while maintaining smooth and reliable movement.

Manufactured from galvanised steel with sealed bearing pulley assemblies, the system is designed for long-term outdoor durability and consistent operation. Adjustable brackets and multiple cable tensioning points allow precise alignment during installation to ensure smooth gate movement and correct cable tracking.

This telescopic synchronising kit is designed for openings up to approximately 8.5 metres and is ideal for residential driveways, townhouse developments, unit complexes and commercial entrances where space behind the fence line is restricted.

Please note this kit does not include the standard sliding gate wheels, track or rollers required for the individual gate panels to slide. It assumes your gates are already operating manually on sliding hardware and a gate motor can be added for automation.

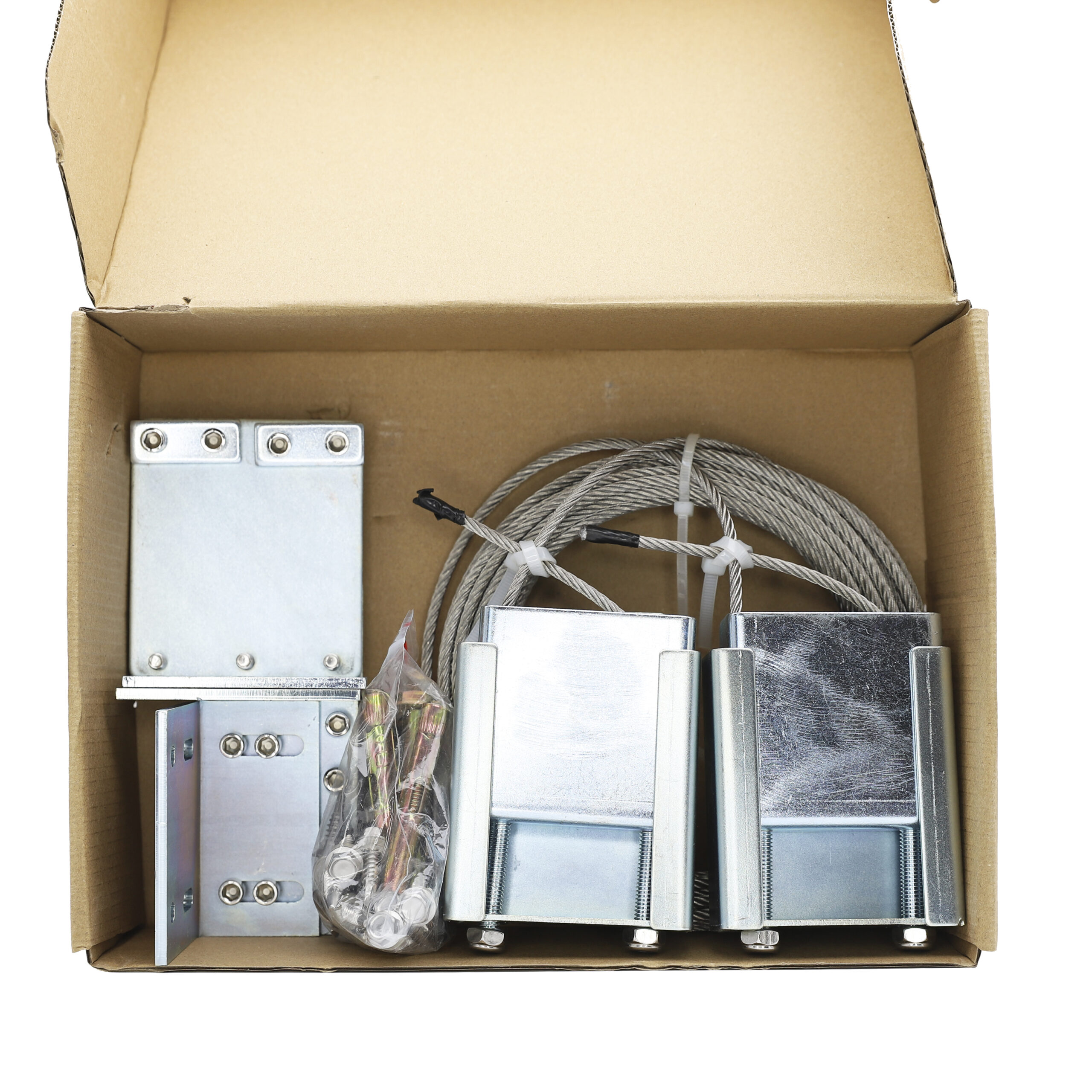

This Listing Includes

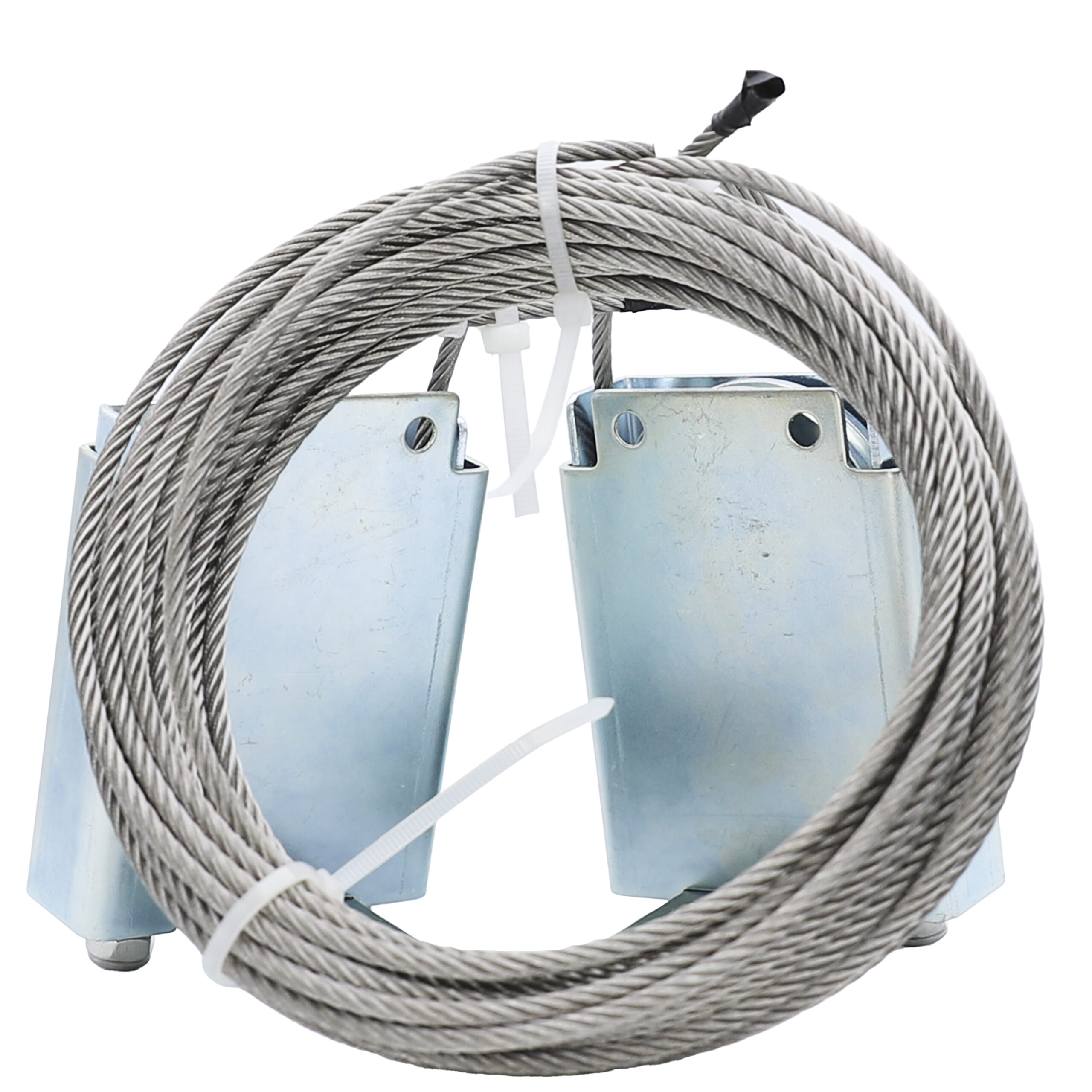

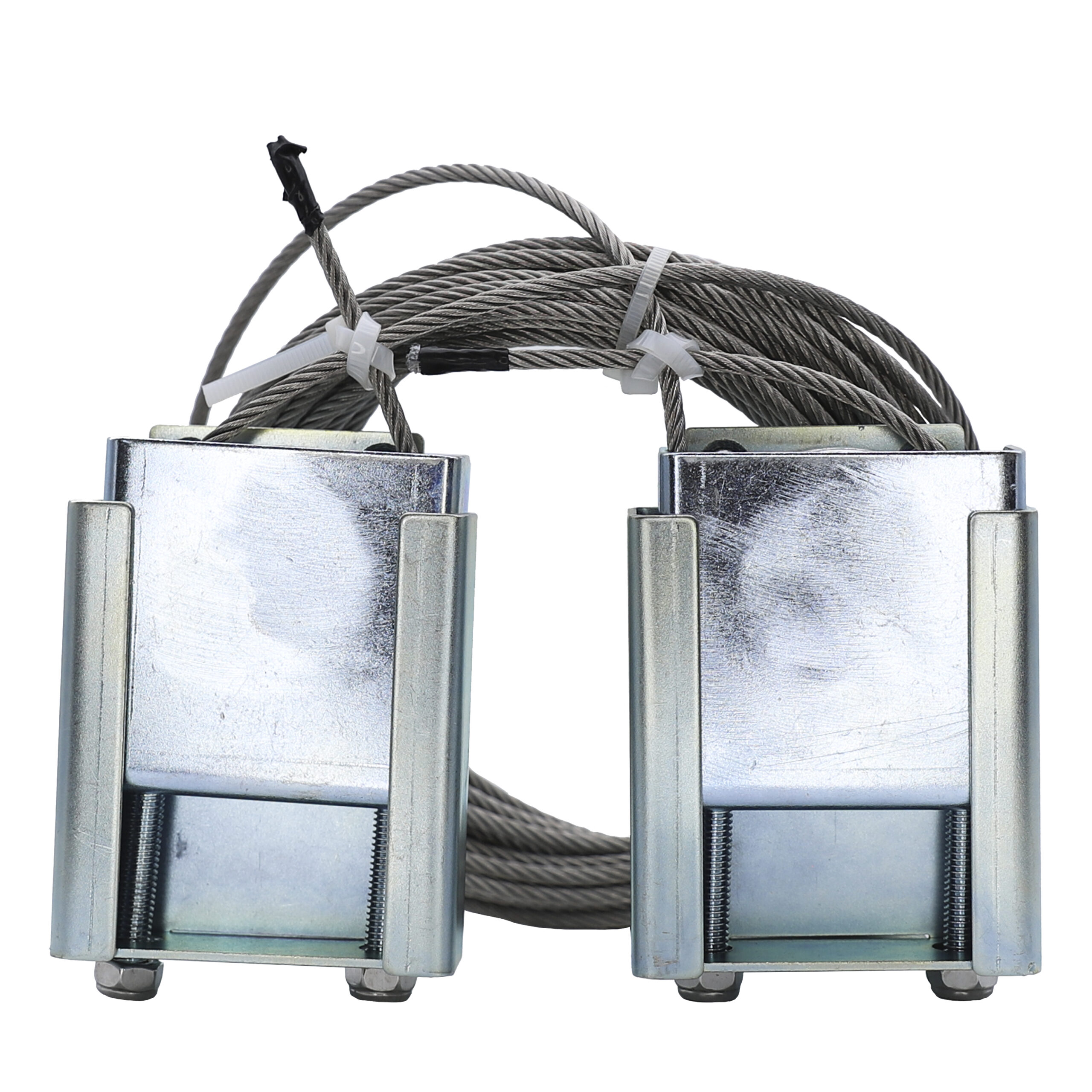

• 1x Drive Gate Cable Assembly
• 1x Slave Gate Cable Assembly

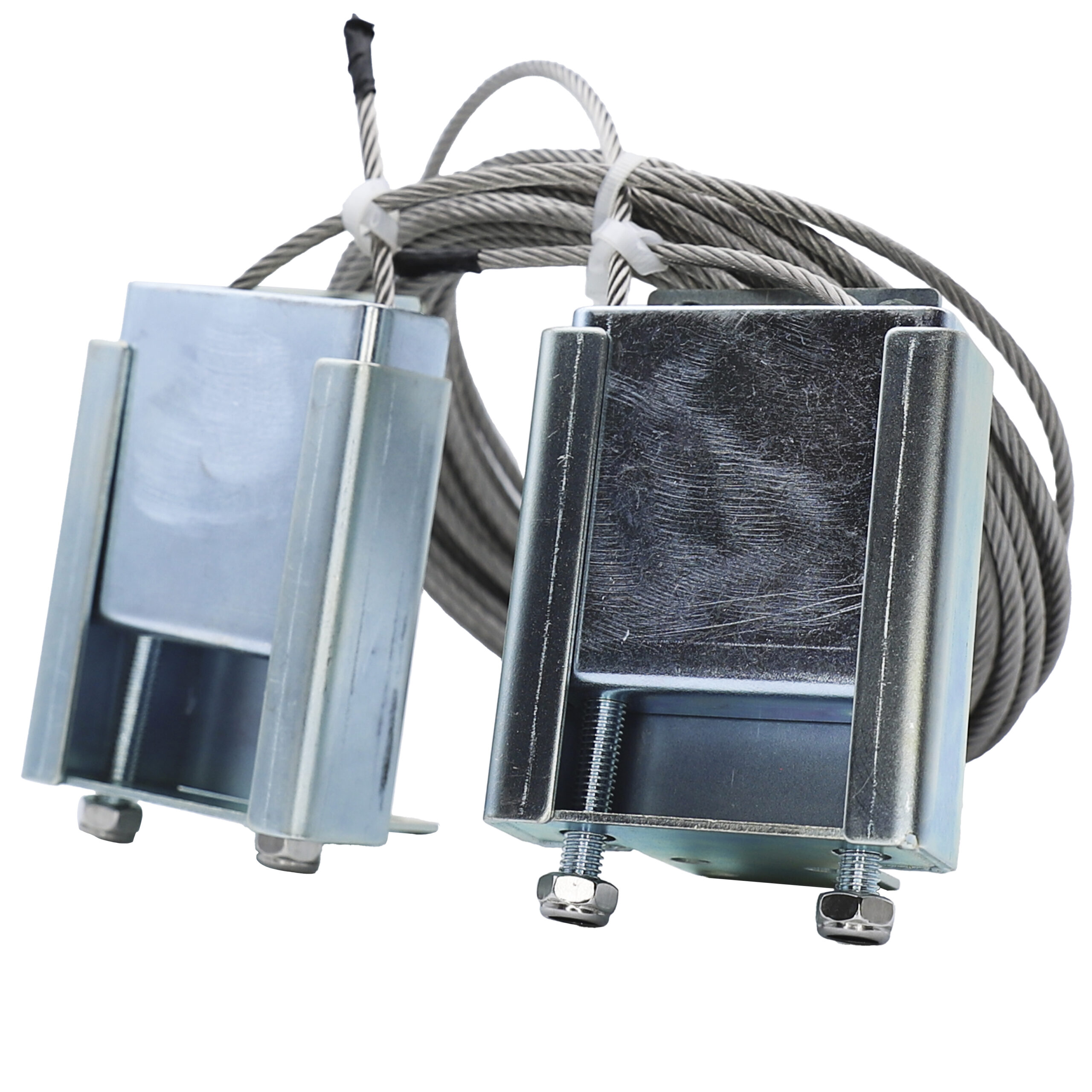

• 1x Drive Gate Carriage Assembly
• 1x Slave Gate Carriage Assembly

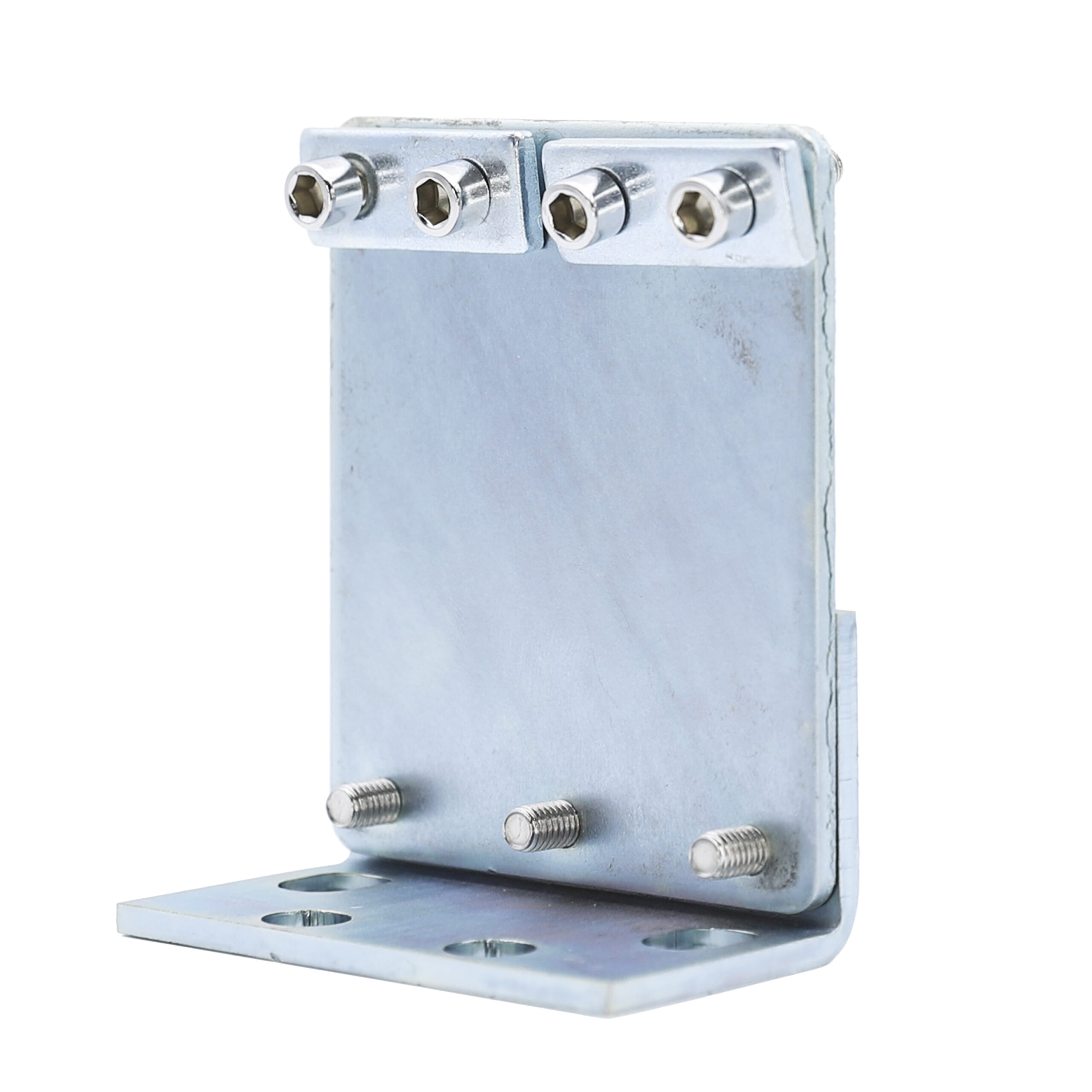

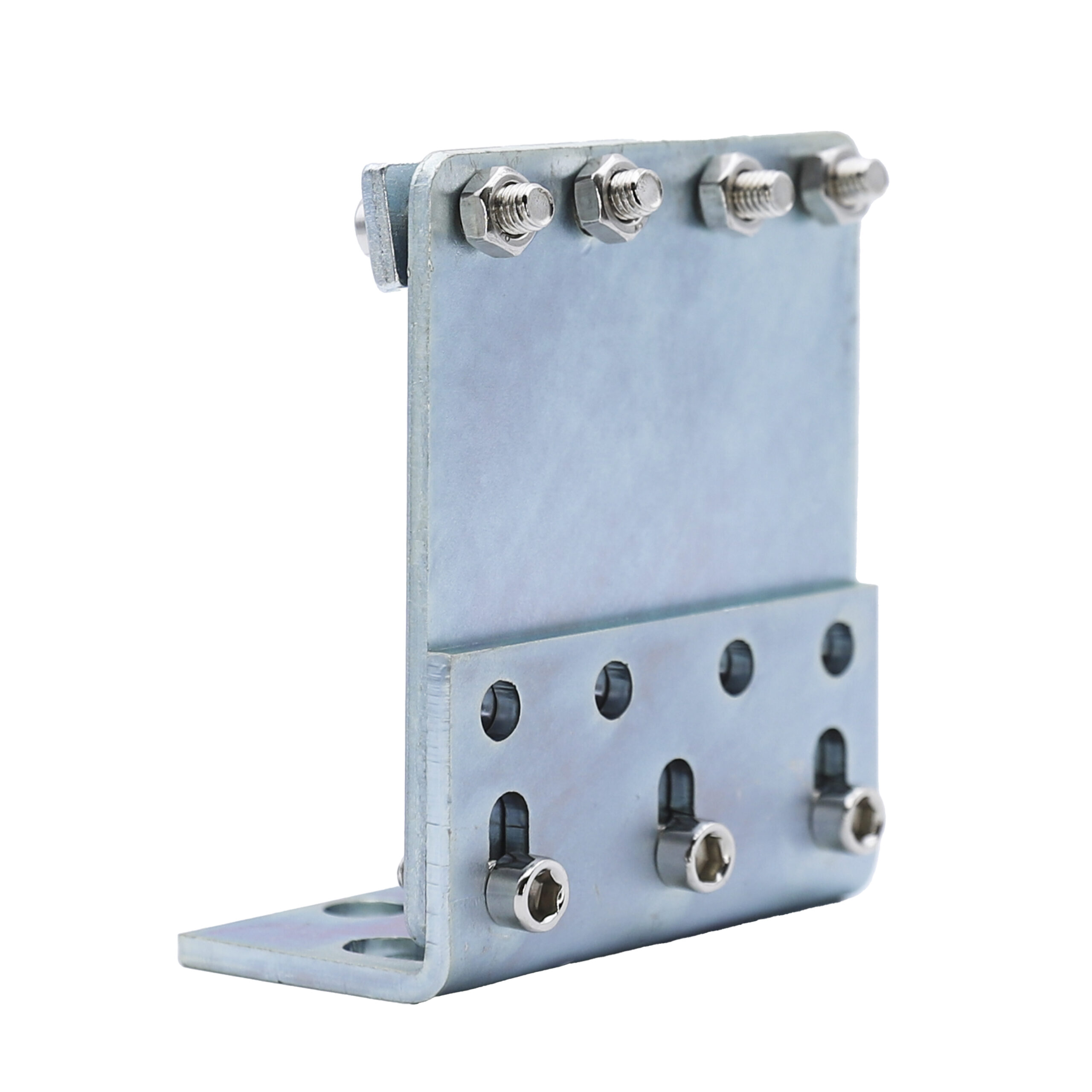

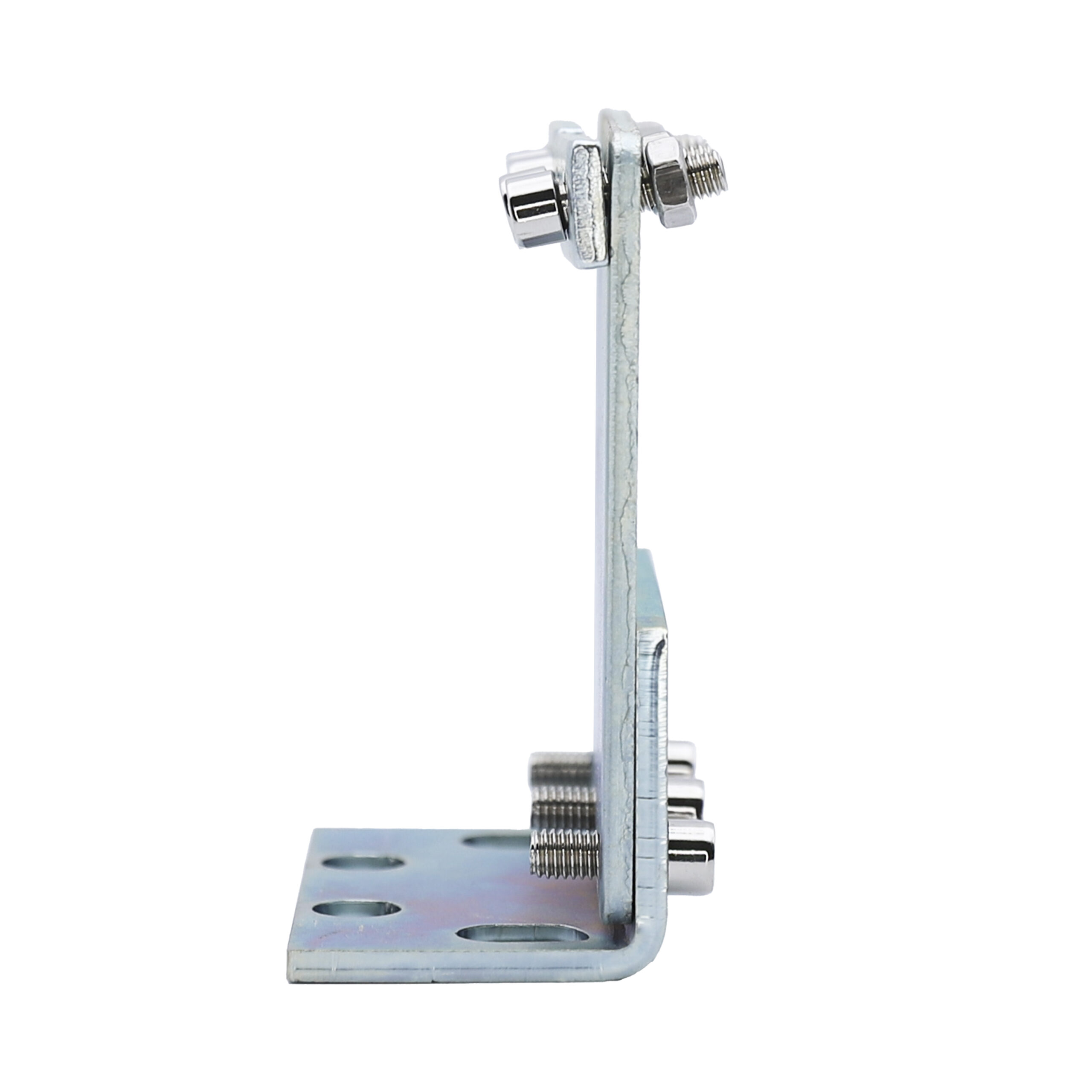

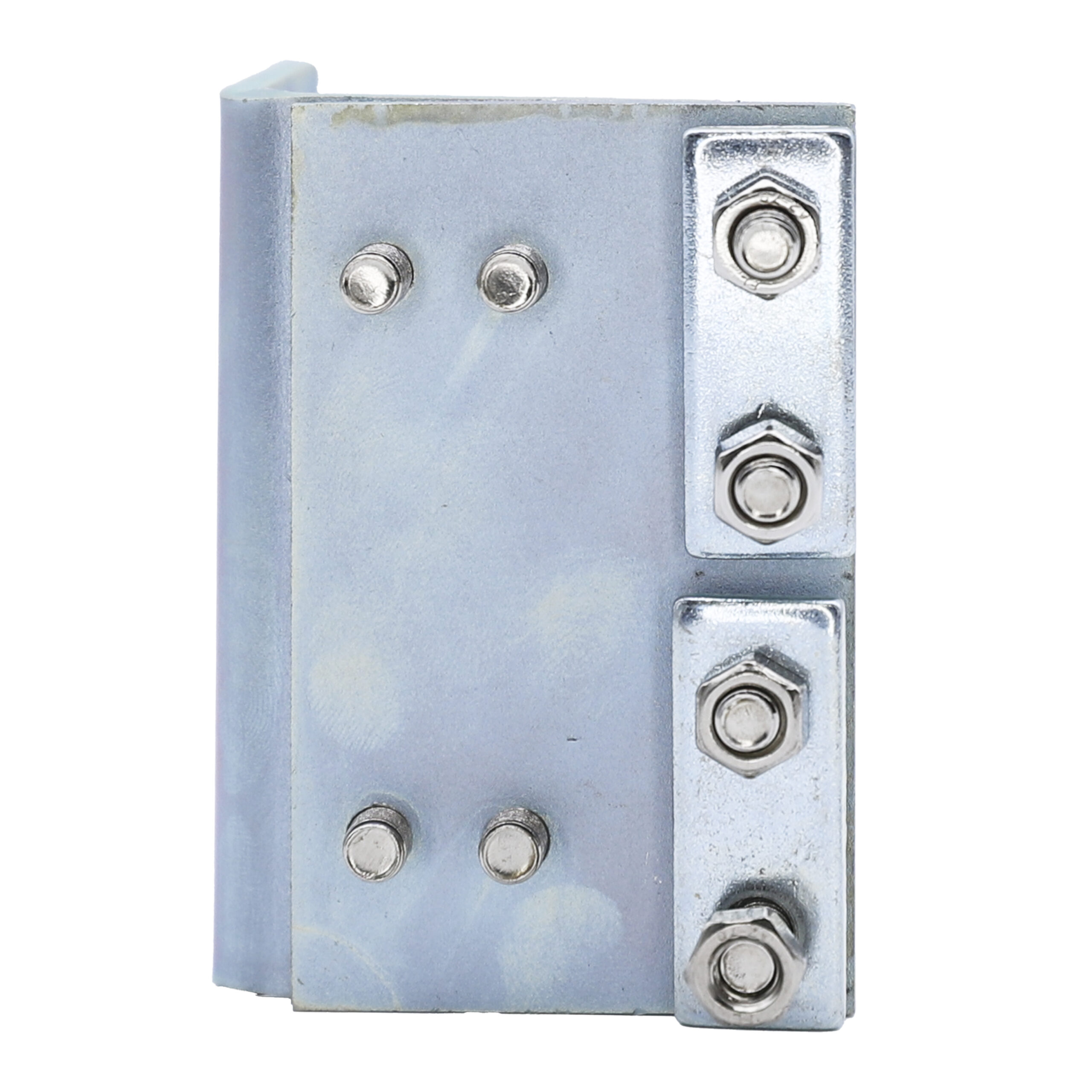

• 1x Fixed Pulley Bracket Assembly
• 1x Floating Pulley Tensioner Assembly

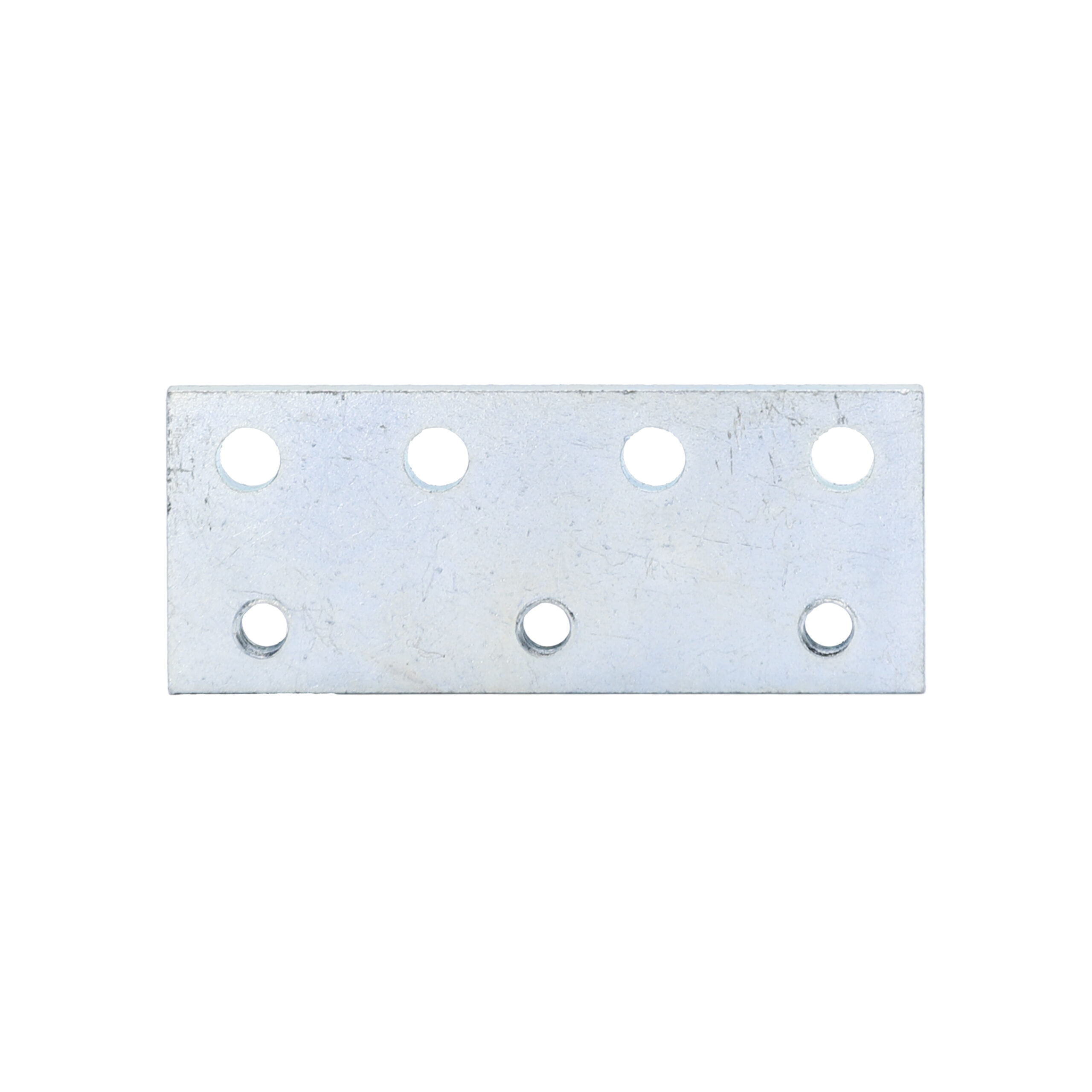

• 1x Cable Equaliser / Joiner Plate
• Multiple Galvanised Cable Pulleys

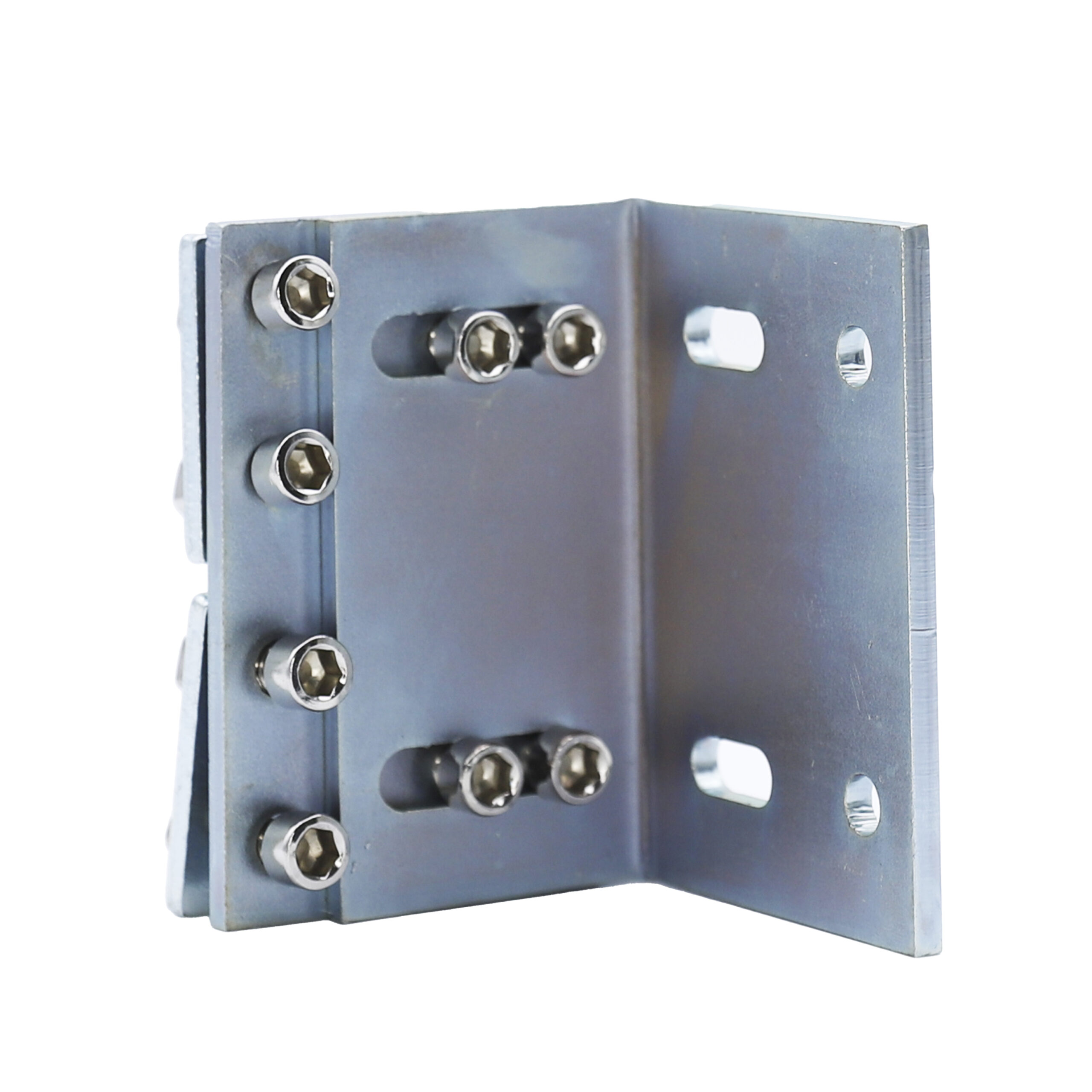

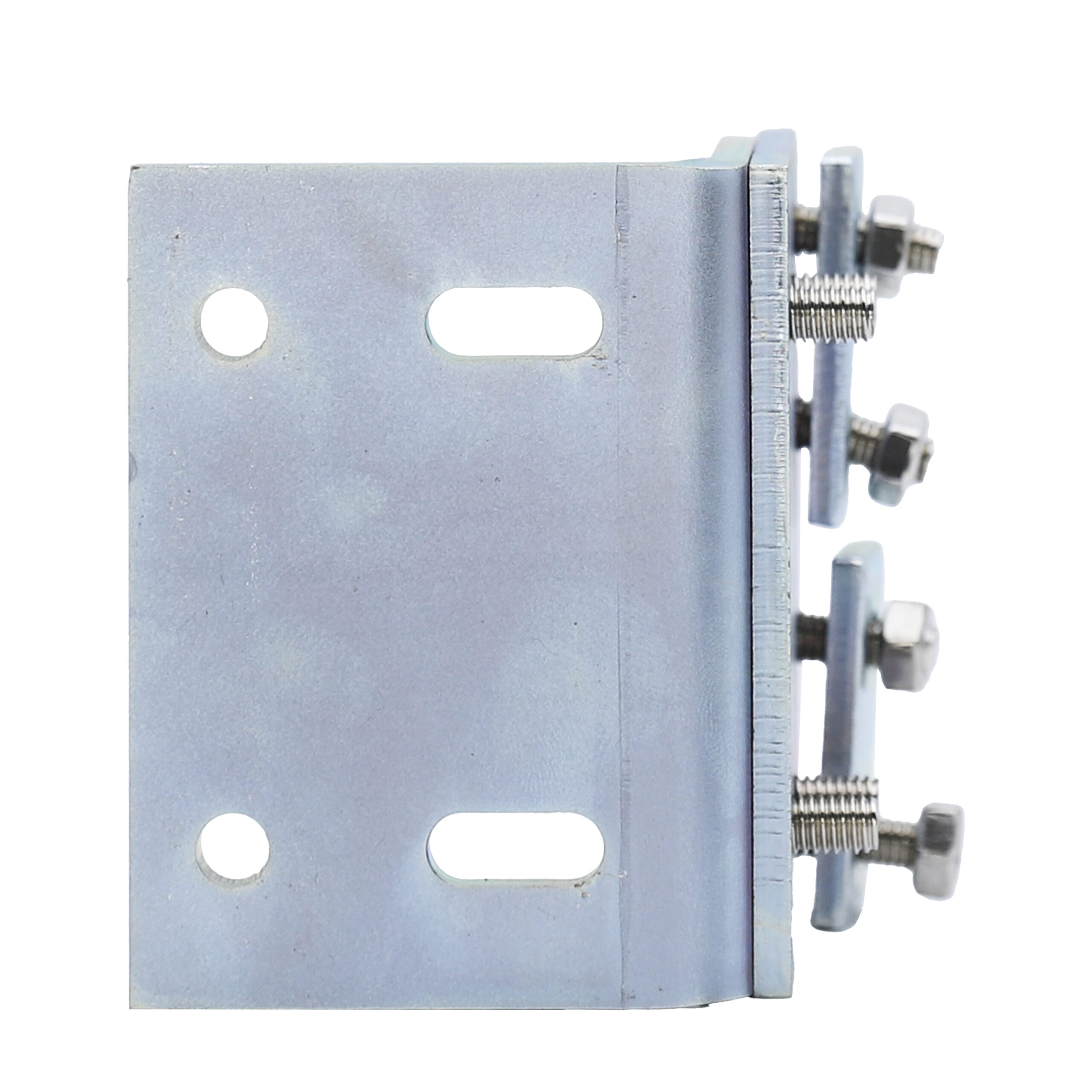

• Multiple Mounting Brackets and Plates
• Cable Guides and Retainers
• Adjustment Hardware and Fasteners

Key Features

• Twin Telescopic Gate System – Allows two sliding gates to move together.
• Reduced Run-Back Space – Requires roughly half the side clearance of a traditional sliding gate.
• Cable Synchronisation System – Links both gate panels so they open and close together.
• Single Motor Operation – Both gates can be automated using one gate motor.
• Galvanised Steel Components – Designed for durability in outdoor conditions.
• Sealed Bearing Pulleys – Smooth cable movement and reduced friction.
• Adjustable Mounting Brackets – Allows precise installation and alignment.
• Multiple Cable Tensioning Points – Enables easy adjustment from either end of the gate.

How Telescopic Sliding Gates Work

A telescopic sliding gate system uses two gate panels that move together to open a wide driveway entrance while reducing the required run-back space behind the fence line.

Instead of a single long gate panel, the leading gate pulls the trailing gate along via a cable and pulley system. As the drive gate moves, the cable system synchronises both panels so they travel together smoothly.

This design allows large driveway openings to be achieved even where space beside the gate opening is limited.

Ideal Applications

• Wide residential driveway entrances
• Townhouse and unit complex access points
• Commercial and industrial gate installations
• Driveways with restricted side clearance
• Automation projects using a single gate motor

Reliable Hardware for Telescopic Sliding Gates

Telescopic gate systems provide an efficient solution where a traditional sliding gate would require too much space. By allowing two panels to travel together, the system maximises usable driveway width while minimising the space required for gate movement.

High quality pulleys, cables and adjustable brackets ensure smooth operation and long term reliability for demanding gate installations.
